HDPE Heavy Duty 80-Ton Rated

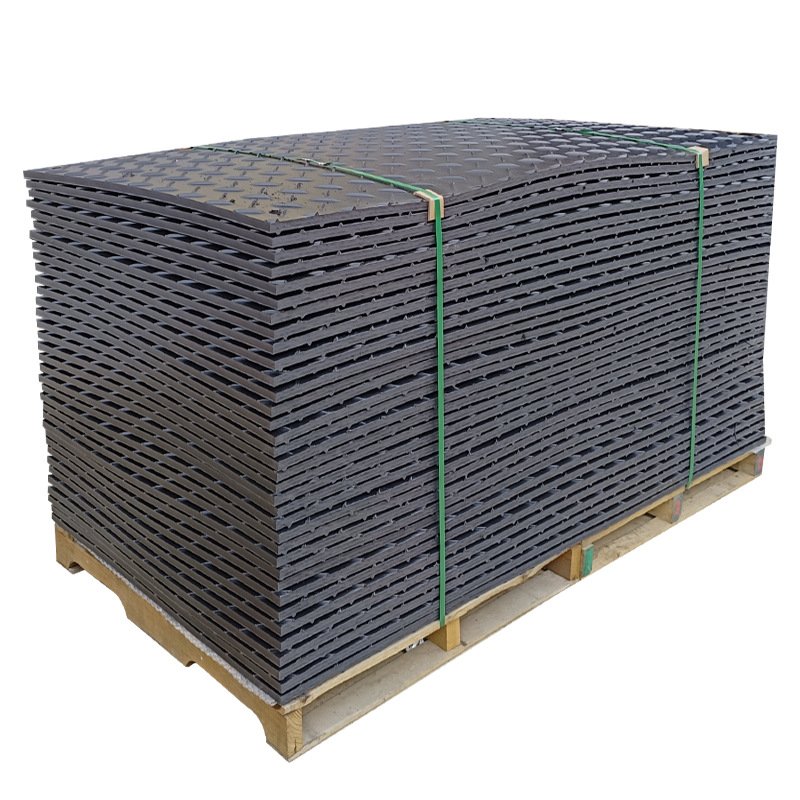

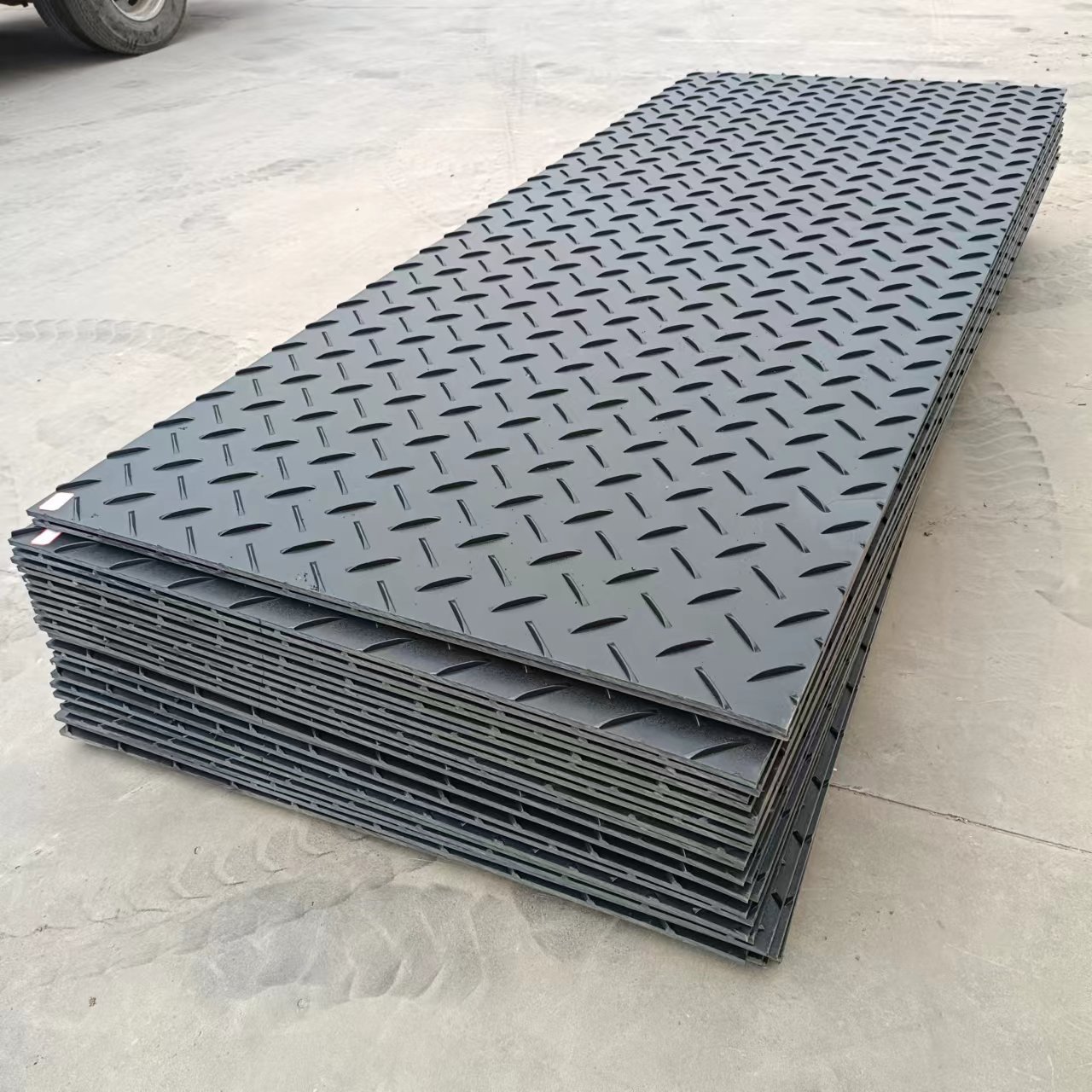

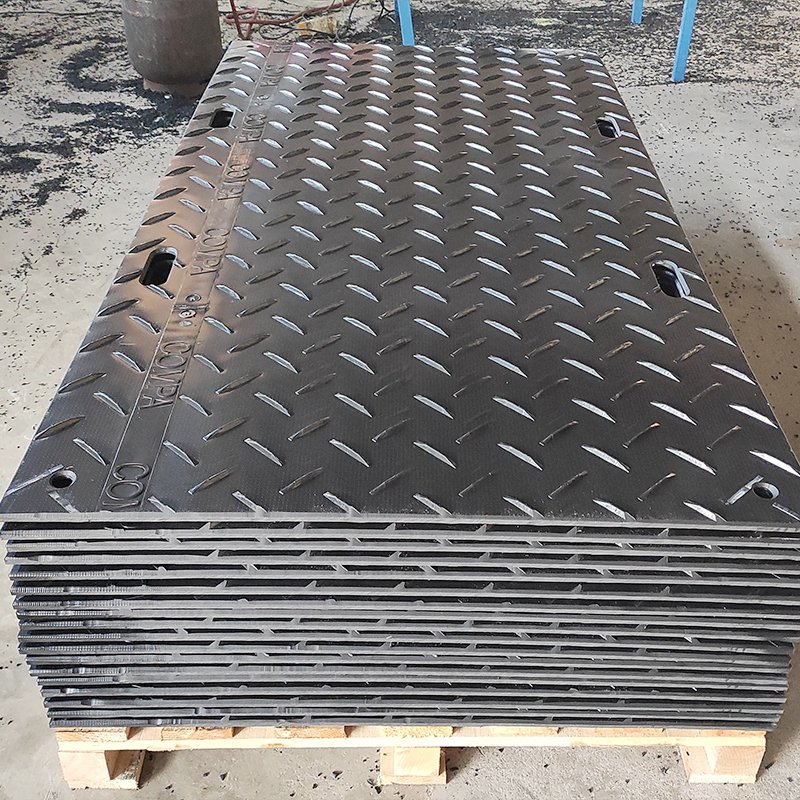

HDPE Ground Protection Mat 4×8 ft — 80-Ton Crane Outrigger Pad

Ultra-durable, reusable ground protection mats engineered for heavy equipment access, crane stabilization, and temporary road construction on soft or sensitive terrain.

Material
100% Virgin HDPE (High Density Polyethylene)
Standard Size
4 ft × 8 ft (1220 × 2440 mm)
Thickness
12.7mm / 19mm / 25mm
Load Capacity
Up to 80 Tons (Static)
Surface Pattern
Anti-slip Diamond (Both Sides)
Temperature
−50 °C to +80 °C
Price
Quote on request (MOQ from 1 piece)
80-Ton Load Tested 100% Reusable UV & Chemical Stable Fast Global Shipping

Product Description

Jiasheng Plastics’ HDPE Ground Protection Mats (4×8 ft) are the industry standard for providing safe, stable access for heavy machinery over soft or sensitive terrain. Manufactured from premium 100% virgin high-density polyethylene, these mats are designed to replace heavy, expensive, and short-lived plywood sheets. Unlike wood, which absorbs water, rots, and splinters under pressure, our HDPE mats are virtually indestructible. They offer a massive 80-ton static load capacity, making them suitable for everything from utility trucks and tracked excavators to large mobile cranes and drilling rigs.

The engineering behind our mats focuses on maximum safety and ease of deployment. Each mat features a aggressive anti-slip diamond pattern on both sides (customizable to one-side smooth if required), providing superior traction for both wheeled and tracked vehicles, as well as safe footing for site personnel. The material is chemically inert, meaning it won’t react with oil, fuel, or site chemicals, and it is fully UV-stabilized to prevent degradation during long-term exposure on outdoor projects. Whether you are building a temporary access road across a swamp or protecting a pristine sports field during an event, these mats provide the ultimate protection for the ground and your equipment.

At our Dezhou factory, we utilize high-pressure compression molding to ensure each mat has consistent density and no internal voids. This manufacturing process results in a mat that can flex without breaking, allowing it to contour to uneven ground while still spreading the load effectively. Each mat is equipped with built-in lifting handles for manual handling or easy machine placement. With an operating temperature range from −50 °C to +80 °C, Jiasheng ground mats are trusted by contractors in the harshest environments, from Arctic mining sites to Middle Eastern oilfields. They represent a sustainable, cost-effective investment that pays for itself over dozens of successful deployments.

Technical Specifications

PropertyTest MethodValueUnit
DensityISO 11830.95 – 0.97g/cm³
Material100% Virgin HDPE
Tensile Strength at YieldISO 527≥ 22MPa
Flexural ModulusISO 178≥ 1,000MPa
Load Capacity (Static)ASTM D695Up to 80Tons
Hardness (Shore D)ISO 86865 – 70
Compression StrengthASTM D695≥ 25MPa
Coefficient of FrictionASTM D18940.45 – 0.60(Wet/Dry)
Service Temperature−50 to +80°C
UV StabilityASTM G154Excellent(Standard 10-Year)
Weight (12.7mm thickness)Calculatedapprox. 36kg (80 lbs)
Standard Dimensions1220 × 2440mm (4 x 8 ft)

Load capacity is dependent on sub-surface ground conditions. Third-party compression test reports are available on request.

Key Features & Advantages

80-Ton Load Rating

High-density structure supports heavy equipment including cranes, excavators, and drilling rigs without deformation.

Anti-Slip Diamond Surface

Dual-sided traction pattern prevents vehicle slippage and provides safe walking conditions for personnel in wet/muddy sites.

Built-in Lifting Handles

Strategic hand-holes allow for rapid manual positioning or easy machine handling with lifting chains or hooks.

Reusable 100+ Times

Extreme durability and rot-proof material ensure a long service life across hundreds of different project deployments.

All-Weather Performance

Remains flexible and impact-resistant from −50°C to +80°C. Won't crack in winter or soften in tropical heat.

UV & Chemical Stable

UV-stabilized color and chemical-proof HDPE material. Resistant to oils, acids, and salt water without degradation.

Typical Applications

Crane Outrigger Pads

Provides critical stability and ground pressure distribution for heavy lifting equipment on soft soil.

Drilling Rig Access Roads

Creates temporary, high-strength roadway tracks for heavy logistics in oil and gas exploration sites.

Event & Stadium Flooring

Protects turf and expensive sports surfaces from damage during concerts, festivals, and equipment staging.

Pipeline Construction Tracks

Enables heavy pipelayer machinery to move efficiently along soft right-of-way paths in all weather.

Utility Vehicle Protection

Prevents utility and bucket trucks from getting stuck or damaging lawns during residential maintenance.

Oilfield Mud Mats

Provides a clean, stable work platform for personnel and tools in muddy or swampy oilfield locations.

Available Sizes & Customization

Standard Sizes
  • 4 ft × 8 ft (1220 × 2440 mm) — Most popular
  • 3 ft × 6 ft (910 × 1820 mm)
  • 4 ft × 10 ft (1220 × 3000 mm)
  • Thicknesses: 12.7mm (1/2"), 19mm (3/4"), 25mm (1")
  • Standard colors: Black, Forest Green, Sand Brown
Customization Options
  • Custom logo embossing for branding & theft prevention
  • Custom colors (Safety Orange, Blue, Yellow)
  • Connection systems (Link-pins, 2-way/4-way connectors)
  • Specific surface patterns (one side smooth, one side rugged)
  • Custom handle counts and positions
  • Radius corners and beveled perimeter edges

Frequently Asked Questions

What is the maximum load capacity of these HDPE ground mats?
Our heavy-duty 4x8 ft ground protection mats are engineered to support static loads up to 80 tons, depending on the ground conditions and soil stability. They are specifically designed for high-pressure applications such as crane outrigger pads and heavy truck access roads where preventing ground rutting and equipment sinking is essential for project safety and efficiency.
How long do these mats typically last in field conditions?
Built from premium 100% virgin high-density polyethylene, our mats are designed for extreme longevity. Under normal industrial use, they can be reused for over 100+ deployments. They are completely resistant to moisture, UV degradation, and chemical spills, ensuring they won't rot, splinter, or crack like traditional plywood or timber mats.
Are the mats easy to clean after use on muddy sites?
Yes, the non-porous nature of HDPE means that mud, oil, and site debris do not soak into the material. You can easily clean the mats using a standard high-pressure water hose or steam cleaner. This quick maintenance ensures that you don't transport cross-contamination between different job sites and keeps the anti-slip surface effective.
Can I order these mats in different colors for brand visibility?
Standard colors are black, olive green, and safety brown. However, for large volume orders (typically 100+ mats), we can manufacture them in custom colors to match your corporate identity and even include your company logo embossed into the surface for enhanced brand recognition and theft prevention on busy shared construction sites.
Do the mats have handles for manual handling?
Absolutely. Every standard 4x8 ft mat comes with 2 or 4 built-in lifting handles (hand-holes) on the perimeter. This allows for easier manual positioning by a two-person team or provides convenient attachment points for light lifting machinery. The handles are rounded to ensure ergonomics and safety during manual handling on site.
What is the typical lead time for a container load of mats?
For a standard 20ft or 40ft container order, our typical production lead time is 15-25 days. We often maintain a stock of standard black 12.7mm mats for immediate dispatch for smaller orders. Shipping from Qingdao port to most major global ports usually takes an additional 20-35 days depending on the final destination.
